Two Approaches to Tolerance Analysis: Worst-Case vs. Statistical Method
Balancing Risk and Reality in Engineering Design and Product Development
Imagine you’re designing a critical assembly for a new product launch. Your boss asks: “Will it fit?” You have two answers available:
Answer 1: “It will always fit; even if every single part comes out at its absolute worst possible dimension, all at the same time.”
Answer 2: “It will fit 99.9997% of the time, with a defect rate of 3 parts per million, and here’s the statistical proof.”
Which answer would you give? More importantly, which answer should you give?

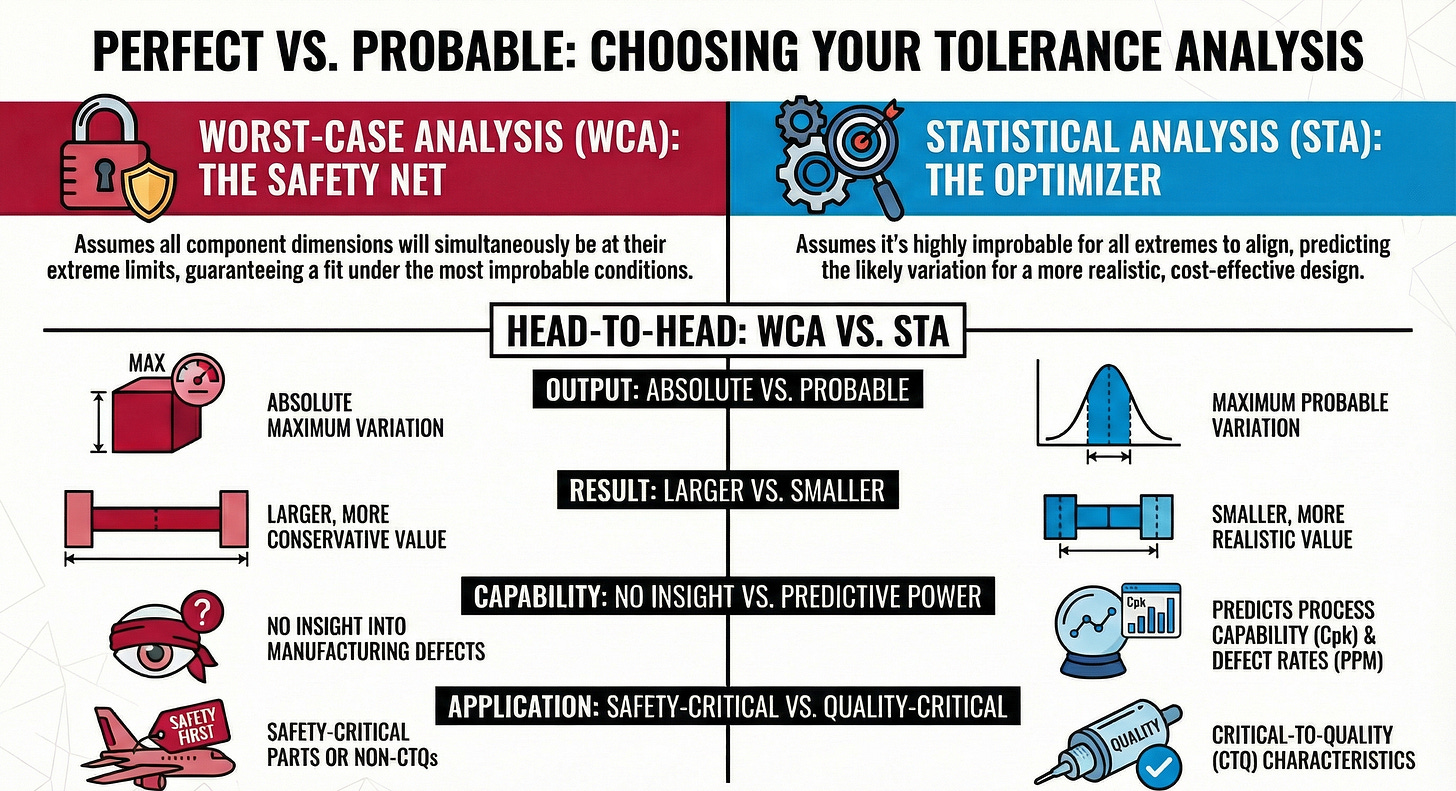

The difference between these two answers reflects the distinction between worst-case thinking and statistical thinking; a difference that can determine whether you end up with an over-engineered, often costlier product or an optimized design that effectively balances risk, performance, manufacturability, and reliability.
Why This Matters
Using worst-case analysis on everything is like designing every building to withstand extreme weather conditions, even if you’re building in a region with minimal risk. Yes, it ensures safety under extreme and unlikely conditions, but it also results in an unnecessarily expensive, heavy, and over-engineered structure.
In many engineering departments, worst-case tolerance analysis (WCA) is often the go-to method for a rapid and reliable verification of non-critical cosmetic gaps or non-functional clearances. But the reality is: nature doesn’t work in worst-cases. Manufacturing doesn’t work in worst-cases. And competitive markets can’t afford worst-case thinking. This is why understanding the difference between WCA and statistical tolerance analysis (STA) is essential for optimized engineering and design practice.
In this article, we’ll be comparing the two primary approaches to tolerance analysis: a detailed breakdown of what each method entails, how they operate, and their practical applications.
Part 1: Worst-Case Analysis (WCA). The Arithmetic Safety Net
What It Really Is. Worst-Case Tolerance Analysis is fundamentally simple and intuitive: you assume every component dimension takes the extreme value (max or min) that pushes your critical assembly dimension in the worst possible direction. All at once. In the same assembly. Then you add up these extremes arithmetically and ask: “Does it still work?”
The Math: For a stack of dimensions with tolerances, WCA simply adds them up:
Total Variation = Σ|Tolerance_i|
If you have five components, each with ±0.1mm tolerance, your total stack tolerance is:
WCA tolerance: ±0.5mm (just add them all)
No square roots. No probability. Just arithmetic that a fourth-grader could do.
When It Makes Sense? WCA isn’t wrong, it’s just conservative. There are legitimate situations where you want this conservatism:
Safety-critical dimensions/parameters: If failure means death or catastrophic damage, worst-case thinking is appropriate. Aircraft control surfaces, medical implants, nuclear containment; these situations justify the “every dimension goes wrong simultaneously” assumption.
Very Short Production Runs: If you’re only making 10 units, statistical probability doesn’t have enough trials to work in your favor. You might actually see near-worst-case combinations.
Unknown Manufacturing Processes: When you’re outsourcing to an unknown supplier or using an unproven process, you don’t have statistical data to work with. WCA provides a floor of guaranteed performance.
Non-CTQ Features: For dimensions that aren’t Critical to Quality such as cosmetic gaps, non-functional clearances, WCA provides quick verification without detailed analysis.
What You Miss
Capability metrics: Even if the worst-case scenario theoretically prevents failure, WCA cannot predict how much the system characteristic (Y) will vary within its worst-case limits, nor how likely the variation is to be near those limits. A design passing WCA might be either “barely acceptable” or “comfortably within limits,” but WCA cannot differentiate between the two. For instance, a system passing WCA could have an unacceptable Cpk1 (e.g., Cpk=0.5) or a world-class Cpk (e.g., Cpk=6.0), but WCA provides no data to determine which is true.
No optimization guidance: Which tolerances should you tighten first for maximum impact? WCA offers no clue.
Drives over-specification: To pass WCA requirements, engineers often tighten tolerances unnecessarily, driving up manufacturing costs exponentially. A seemingly minor change in tolerance, such as reducing ±0.1mm to ±0.05mm, can have a substantial impact on production costs. In this case, it might shift a standard $50 machining operation to a more expensive $500 grinding operation, resulting in significant cost implications when applied to thousands of parts.
The Reality Check
In decades of production, how many times would you actually expect every dimension in a stack simultaneously at its extreme limit? The answer is probably “never.” Because that’s not how manufacturing variation works.
When you machine a part, if one dimension runs slightly over nominal, another dimension on the same setup often runs slightly under due to tool wear, thermal effects, or fixture compliance. Variations tend to cancel out, not align. WCA assumes a malicious universe where every random variation conspires against you. Statistical analysis acknowledges that randomness, by its nature, creates both favorable and unfavorable combinations; and the favorable ones are far more common.
Part 2: Statistical Tolerance Analysis (STA), The Reality
Statistical Tolerance Analysis represents a philosophical shift: from asking “Can this possibly fail?” to asking “How often will this fail?” A design with a 3 PPM (parts per million) defect rate is phenomenally reliable. But to WCA, which only understands “always” or “never,” this same design is unacceptable.
STA recognizes these fundamental realities about manufacturing:
Dimensions cluster around their mean: Manufacturing processes produce bell curves, not uniform distributions. Most parts come out near nominal; extreme values are rare.
Variations are independent: The dimension of one feature doesn’t dictate the dimension of another unrelated feature. They vary randomly and independently.
Method 1: Root-Sum-Square (RSS)
RSS is a core method within statistical tolerance analysis for linear systems such as linear stacks of mechanical parts. In the context of tolerance analysis, a linear system refers to a mechanical assembly or a characteristic whose resulting variation (Y) is calculated by the simple addition and subtraction of the characteristic dimensions and variations (X) of its components. Because of their mathematical simplicity, linear systems/stacks are the domain where simpler, manually modeled tolerance analysis techniques, such as Worst-Case Analysis (WCA) and the Root-Sum-Square (RSS) method, are most appropriate and reliable.
Instead of adding tolerances arithmetically, RSS recognizes that independent random variations combine according to the laws of probability. In essence, RSS uses the laws of probability to assume that extreme errors in different components are unlikely to compound fully, leading to a more realistic prediction of total variation compared to the highly conservative arithmetic addition of tolerances. RSS method predicts the probable or likely maximum variation, which is a smaller value than WCA
The Math: For the same five components with ±0.1mm tolerance, the RSS method predicts:
RSS tolerance = Σ(tolerance_i)² = √(5 × 0.1²) = 0.224mm
Compare this to WCA tolerance ±0.5mm. RSS predicts less than half the variation!
The core calculation of the RSS method determines the standard deviation (σ) of the overall system characteristic Y. In this sense, it gives a single standard deviation. However, because this standard deviation is calculated from multiple component standard deviations (σi) or derived from tolerances (Ti) that may be weighted, the final reported metric is frequently termed a composite statistical tolerance or variation limit rather than simply σ itself. It is the statistical measure of dispersion of the resulting system dimension.
The practice of substituting tolerances directly into the RSS formula without using standard deviations is employed widely, especially where statistical process control data is not available, because it is simpler and more universally applicable.
Method 2: Monte Carlo Analysis
Real engineering problems aren’t always linear. Consider nonlinear geometries such as angles, arcs, cam profiles. A linear system is one where the output characteristic (Y) is determined by the simple addition and subtraction of the component characteristics (X). Linear systems are typically mechanical “stacks”. Or consider non-normal distribution processes with skewed outputs. Or cases where complex interactions exist, e.g. dimensions that affect each other through trigonometry or physics.
For these situations, RSS does not work. We need Monte Carlo Analysis.
How Monte Carlo Works: Virtual Manufacturing
Monte Carlo simulation is a conceptually simple but powerful computational method
Define distributions: Specify the statistical distribution for each input dimension (normal, uniform, triangular, etc.)
Run virtual trials: Generate thousands (or millions) of random assemblies by selecting random values from each distribution
Calculate outcomes: For each virtual assembly, calculate the final dimension using the actual relationship (linear, trigonometric, whatever)
Analyze results: Examine the distribution of outcomes to predict mean, standard deviation, and defect rates
The Power of Seeing the Full Picture
Unlike RSS which gives you a single tolerance limit or standard deviation, Monte Carlo gives you the entire distribution. You can visualize:
The shape: Is it truly normal, or skewed?
The tails: Where do the extreme outliers land?
The sensitivity: Which input variations have the biggest impact on output?
The capability: What’s your actual Cpk? Your defect rate?
This wealth of information enables intelligent optimization. You can see that tightening tolerance A by 20% reduces defects by 50%, while tightening tolerance B has almost no effect. That’s the kind of insight you need for effective optimization.
Part 3: The Comparison
Let’s make this concrete with a real-world example:
Scenario: Consider the Clevis problem we previously solved using WCA method.
Specification of gap g for final assembly was given: 0.686mm ±0.584mm.

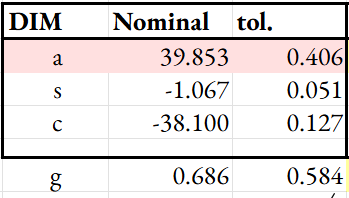

WCA Result: As explained in a previous post, we calculated for the pin dimension a: 39.853mm ±0.406mm. This means any tolerance value greater than ±0.406 for a, say ±0.500, will lead to g tolerance range greater than ±0.584. Which means the design will FAIL the specification (g exceeds the allowable variation ±0.584mm limit) and as a conclusion: Design is unacceptable; you must tighten the pin tolerance.
RSS Result: Let’s assume the calculated tolerance for a from WCA method, and calculate the gap tolerance using RSS method:
g variation = √(0.406² + 0.051² + 0.127²) = 0.428mm
which is lower than allowable g variation ±0.584mm. This means that the pin tolerance can still be increased to, say ±0.500. Calculate again:
New g variation = √(0.500² + 0.051² + 0.127²) = 0.518mm
which is still lower than ±0.584. Therefore RSS method predicts that with a: 39.853mm ±0.500mm the design PASSES specification (g remains within ±0.584mm limit) and you conclude: Design acceptable, and still could be optimized. This is while the same design; same tolerance for the pin a: 39.853mm ±0.500mm predicted FAIL with WCA method. Different analytical approach. Completely different conclusions.
The Cost Implication
If you relied only on WCA, you’d conclude 0.500 design is unacceptable. The typical response? Tighten the tolerances to ±0.406mm, or lower, to make WCA work.
Cost impact of tightening the pin tolerance from ±0.500mm to ±0.406mm (this is roughly 19% tightened):
Machining cost increase: negligible, you are till well inside normal, easy machining capability for turning.
Inspection cost increase: 1-3% (tighter tolerances require more precise measurement)
Scrap rate increase: negligible if process capability comfortably inside new tolerance; could rise if the process is marginal (harder to hit target)
Part 4: Making the Right Choice
Use WCA when:
Linear dimensional chains
Safety-critical applications where failure is unacceptable
Very low production volumes (<100 units)
Non-CTQ features needing quick verification
Unknown or uncontrolled manufacturing processes
Customer specifications explicitly require it
Use RSS when:
Linear dimensional chains
Independent, normally distributed variations
Moderate to high production volumes
CTQ characteristics requiring capability analysis
Process data indicates centered, capable processes
Use Monte Carlo when:
Nonlinear geometric relationships
Asymmetric or non-normal distributions
Complex multi-variable interactions
Need to visualize full distribution of outcomes
Optimization requires sensitivity analysis
When STA Can Mislead
Statistical analysis is nothing but mathematics based on some assumptions. If those assumptions don’t hold, the results are meaningless:
STA assumes:
Centered processes: Production means match nominal dimensions. If a process consistently runs 0.05mm high, STA predictions break down.
Normal distributions: RSS specifically assumes Gaussian distributions. Some processes (like casting or molding) may produce skewed distributions.
Independent variations: Dimensions vary independently of each other. If multiple dimensions are cut in a single operation, they may correlate.
Random assembly: Parts are randomly selected and assembled. If parts are measured and selectively mated, STA predictions change.
Process stability: Variation patterns remain consistent over time. If processes drift or shift, statistical predictions become unreliable.
The Hybrid Approach: Best of Both Worlds
In professional practice, engineers use a layered strategy:
Layer 1 (Initial Design): Quick WCA to ensure basic feasibility and avoid obvious problems.
Layer 2 (Design Optimization): RSS or Monte Carlo to optimize tolerance allocation, predict capability, and minimize cost.
Layer 3 (Design Validation): Return to WCA for critical safety dimensions or as a final sanity check.
This approach captures WCA’s simplicity for screening while leveraging STA’s power for optimization.
Conclusion:
Worst-case analysis designs for a universe where randomness conspires maliciously, where every variation aligns against you, where probability doesn’t exist. It’s comforting. It’s simple. And it’s often wrong; because it drives unnecessary costs and missed opportunities.
Statistical tolerance analysis designs for the world as it actually behaves: probabilistic, normal-distributed, statistically predictable. It requires more sophistication, better data, and honest conversations about acceptable risk. But it produces better products at lower costs with quantifiable reliability.
The worst case is assuming the worst case is normal. The best case? Using the right tool for each job: WCA as a safety check, STA as the optimization engine, and process data as the foundation for both.
Quick Reference
Worst-Case Analysis (WCA):
Assumes all dimensions at extreme limits simultaneously
Arithmetic summation of tolerances
Guarantees fit but provides no probability information
Often overly conservative and cost-ineffective
Best for safety-critical, low-volume, or non-CTQ2 applications
Statistical Tolerance Analysis (STA):
Recognizes probabilistic nature of manufacturing variation
RSS for linear systems, Monte Carlo for complex/nonlinear
Predicts likely outcomes with capability metrics
Enables cost optimization through intelligent tolerance allocation
Required for CTQ characteristics and professional design practice
Use WCA to ensure you won’t fail catastrophically. Use STA to ensure you’ll succeed economically. Use both to engineer with confidence.
Cpk (Process Capability Index) is a metric used in quality management, particularly within the Six Sigma methodology, to assess the performance and capability of a process relative to customer requirements. It measures how well the process fits within specification limits. Cpk > 1.33 is typically considered capable; Cpk > 1.67 is excellent. The Cpk index considers both the inherent variation (or spread) of the process and its centering (or location) relative to the target or specified limits. The index assesses how far the process mean (μ) deviates from the specified target. The lower the Cpk value, the further the process mean is from the specified target, suggesting poor control. A process is generally considered minimally capable if its Cpk value is ≥1. If Cpk is less than 1.0, the process is likely generating defective products and does not meet the Critical-to-Quality (CTQ) requirements. A negative Cpk (e.g., -0.16) indicates a process mean is outside the tolerance region and suggests significant opportunities for improvement. Cpk is calculated by finding the minimum distance from the process mean (μ) to either the Upper Specification Limit (USL) or the Lower Specification Limit (LSL), standardized by three times the estimated standard deviation (σ).
This may raise a seeming contradiction in tolerance analysis recommendations. The recommendations that WCA is used for non-Critical-to-Quality (non-CTQ) characteristics and is also essential for areas involving safety-critical parameters are both supported, though for entirely different reasons. The confusion arises because safety-critical parameters inherently meet the definition of Critical-to-Quality (CTQ) characteristics.
Here is an explanation of how this dual recommendation makes sense, drawing on the distinct purposes WCA serves for each category.
1. Rationale for Worst-Case Analysis (WCA) on Non-CTQ Parameters
Worst-Case Analysis (WCA) is generally recommended for characteristics that are not Critical-to-Quality (non-CTQs) because it is a simple, quick, and useful way to confirm basic functionality without requiring extensive data or complex modeling.
• CTQs vs. Non-CTQs: CTQs are the “vital few” characteristics where variation must be minimized around a target value to assure customer satisfaction. They often relate to a product’s primary function, where a customer notices an increasing negative impact as the characteristic moves away from the target. In contrast, most characteristics are non-CTQs, where the customer does not perceive a problem until the characteristic falls outside certain tolerance limits (e.g., ensuring pieces fit together during assembly).
• WCA Limitation: WCA provides no information about variation or capability (Cpk). Since CTQs require predictions of variation, capability, and other risks, WCA alone is considered inappropriate for CTQs.
• WCA Application for Non-CTQs: For non-CTQs (like mechanical stacks designed simply to fit together), WCA is acceptable because it guarantees that the system characteristic will be within tolerance if all component variables stay within tolerance limits. WCA provides the necessary deterministic assurance (guaranteed fit) without the expense and effort required for statistical modeling needed for CTQs.
2. Rationale for Using WCA in Safety-Critical Applications
Safety-critical applications, by nature, demand the highest degree of confidence against failure, making a deterministic guarantee appealing, even if the parameter is functionally a CTQ.
• Safety as a CTQ: A characteristic is categorized as a CTQ if variation causes performance to change noticeably or if it makes failures more likely. Given that safety-critical parameters involve potential equipment destruction or human safety risks, they are inherently highly important and should, in practice, be managed as CTQs.
• Conservatism and Unacceptable Risk: Safety-critical situations, such as designing building floors, bridges, or pressure equipment, require a “much more conservative approach” because the consequences of failure are “unacceptable”. Designers must anticipate the worst possible load and ensure the design withstands it with a factor of safety greater than one.
• The WCA Guarantee: WCA calculates the maximum possible variation by combining the absolute worst combination of component tolerance limits. By guaranteeing that function (or dimensional fit/clearance) is maintained even under this absolute worst-case scenario, WCA provides the extreme conservatism required for certain safety-critical geometric constraints (like avoiding structural interference or ensuring a minimum required clearance/wall thickness).
3. Addressing the Conflict: Safety-Critical is (Usually) a CTQ
The conflict between the recommendation for WCA (typically non-CTQ method) and the nature of safety-critical parameters (highly sensitive, therefore CTQ) is resolved by understanding that for high-risk parameters, both the deterministic assurance and the statistical control are often required.
• The Need for Both WCA and Statistical Analysis: For parameters that are safety-critical and high-risk, a successful design must satisfy two criteria:
1. Worst-Case Conformance (WCA): The system must guarantee function under the most extreme combination of tolerances (zero dimensional defects under specified conditions).
2. Statistical Capability (STA): The manufacturing process must be predictable and highly capable (e.g., high Cpk) to control variation and predict the non-zero probability of defects that could arise from unavoidable common causes of variation in production.
• Design for Six Sigma (DFSS) View: Since CTQs require predictions of variation and risk, they require statistical tolerance design. If a system designed using WCA yields zero predicted defects in the worst case, but the process has an unacceptable capability index (Cpk), it still does not meet DFSS standards. Therefore, for critical functions, while WCA ensures the theoretical worst-case fit, subsequent statistical analysis is essential to prove that the process can reliably maintain that tight control and manage the true risk level.
In summary, WCA is universally acceptable for non-CTQs because they tolerate risk and require minimal assurance. WCA is applied to safety-critical parameters despite them being CTQs because the catastrophic consequences of failure necessitate an extreme, deterministic guarantee against physical dimensional stacking failure that only WCA can provide.
